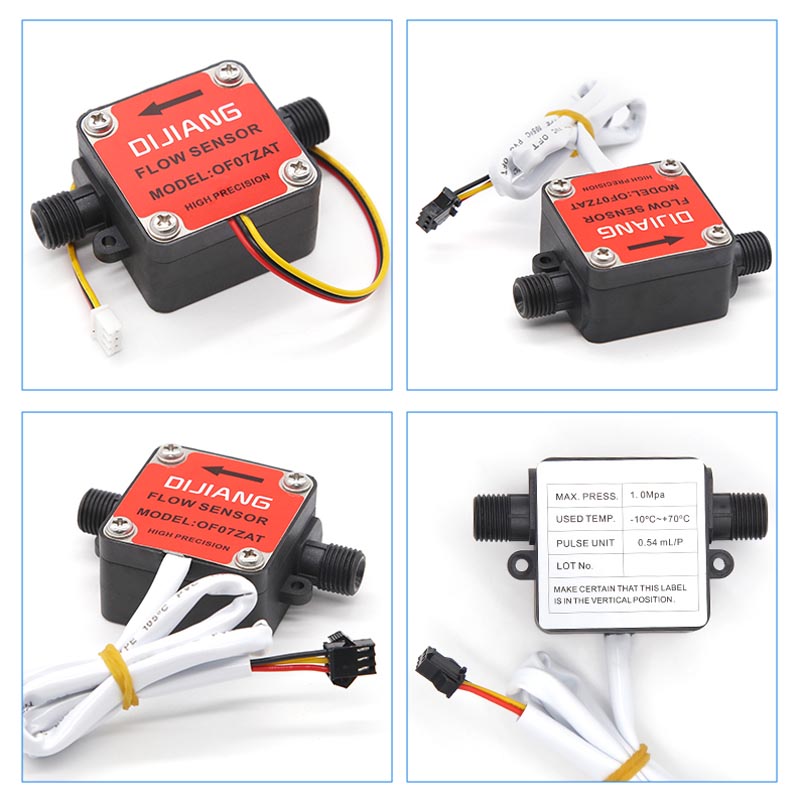

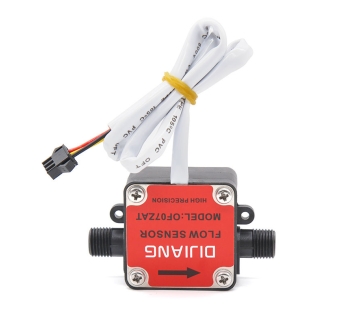

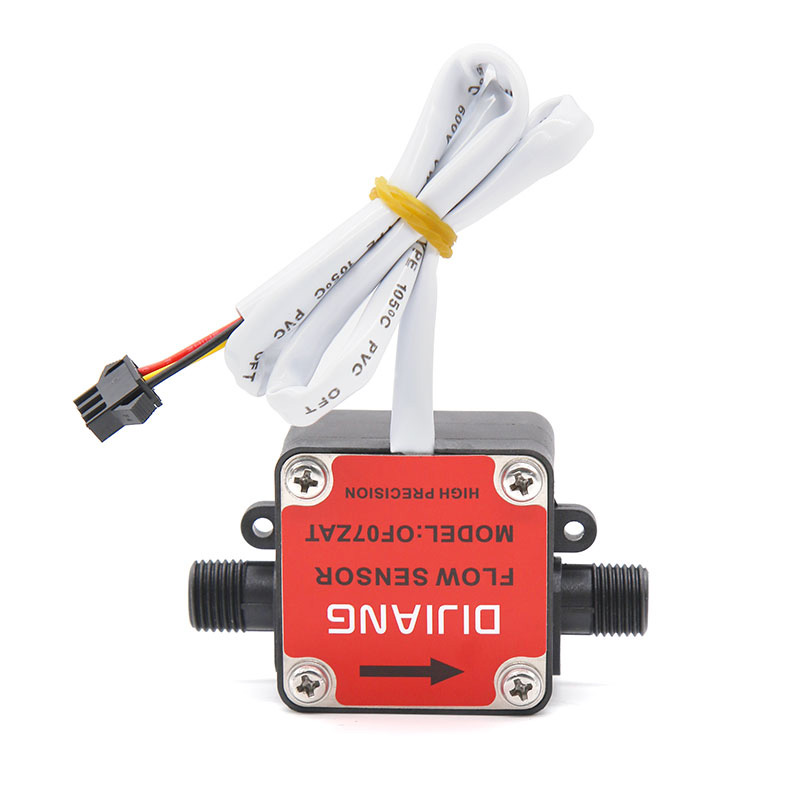

OF07ZAT霍尔水流量传感器0.3-5L/min油流量计，可用于乳液，牛奶，洗衣液，润滑油的测量
型号： OF07ZAT
流量范围： 0.3-5L/min
接口尺寸： BSPP G1/4"

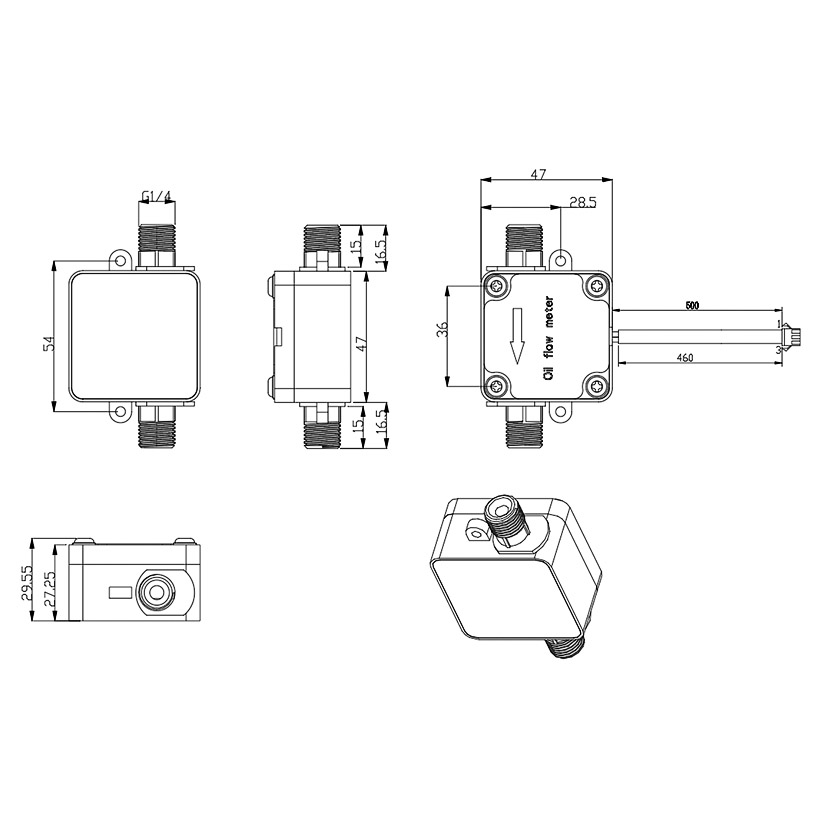

外形尺寸mm： 80*47
最小通径： 5mm
工作电压： 3.5-24V DC,1.8-5.5V DC 低功耗版
引线长度： 标准15cm 可定做
线尾接头： SM2.54 3P 可定做
测量介质： 纯净水，油，乳液等
工作耐温： 70℃
工作耐压： 1.0Mpa
输出类型： NPN型脉冲信号
最大电流： 10mA，低功耗版（10μA）
主体材质： PA66
转轴材质： 304不锈钢
电气强度： AC500V 50Hz,不击穿或闪络
脉冲占空比： 50%± 10%
绝缘电阻： ＞100MΩ
累积流量特性1L=540Hz，±5%
瞬时流量特性F=9Q，±5%
测量方向： 单向
安装方向： 无要求
1、PA66尼龙加玻纤材质，轻便耐用；
2、双端为螺纹结构，连接更方便；
3、国产霍尔元件，灵敏可靠；
4、输入电压为5V时，输出高电平4.5V。输入电压为24V时，输出高电平为23.5V。
5、接线：红正黑负黄色输出，其他规格可定做
6、定做需要满足一定的数量要求。
注意事项：
1、 为了避免颗粒、 杂物进入传感器， 在传感器的入水口必须安装过滤网；
2、 当磁性材料或对传感器产生磁力的材料靠近传感器时， 其特征可能有所变化；
3、 水流量传感器的安装须避开震动和摇晃的环境和应用， 以免影响传感器的测量精度；
4、 请勿擅自拆开水流量传感器以防损坏， 凡擅自拆解过的水流量传感器均不在保修范围之列；
5、 未使用过本结构类型传感器， 用于直接替代时可能有不合适之处， 敬请及时提出；
6、工作电压和输出电压有如下区别，请酌情选择：
24V款：DC5-24V，额定电压DC24V，输出高电平23.5V，低电平0.5V;
低功耗版（10μA）：DC3.3-5.5V，额定电压5V，输出高电平4.5V，低电平0.5V;
7、接PLC时请务必使用PLC供电和接收信号，不能单独供电，容易烧掉霍尔。
适用范围：
水流量传感器主要用于燃气热水器、电热水器、洗衣机、售水机、壁挂炉、电磁热水器、水控（一体式）机、控水机、热泵热水工程、一卡通管理系统、智能水表IC水表、校园卡售水系统、自助售水（贩卖）机、水处理设备、配水配药设备、冷却系统、循环系统、智机械设备、加热设备、仪器仪表、制药（制济）设备等
Specifications
| Parameter | Value |
|---|---|
| Model | OF07ZAT |
| Flow Range | 0.3-5L/min |
| Interface Size | BSPP G1/4" |
| Dimensions (mm) | 80*47 |
| Minimum Bore Diameter | 5mm |
| Operating Voltage | 3.5-24V DC, 1.8-5.5V DC (Low Power Version) |
| Lead Length | Standard 15cm, Customizable |
| Terminal Connector | SM2.54 3P, Customizable |
| Measurement Medium | Pure Water, Oil, Emulsions, etc. |
| Operating Temperature | 70℃ |
| Operating Pressure | 1.0Mpa |
| Output Type | NPN Pulse Signal |
| Maximum Current | 10mA, Low Power Version (10μA) |
| Main Body Material | PA66 |
| Shaft Material | 304 Stainless Steel |
| Electrical Strength | AC500V 50Hz, No Breakdown or Flashover |
| Pulse Duty Cycle | 50%±10% |
| Insulation Resistance | >100MΩ |
| Cumulative Flow Characteristic | 1L=540Hz, ±5% |
| Instantaneous Flow Characteristic | F=9Q, ±5% |
| Measurement Direction | Unidirectional |
| Installation Direction | No Specific Requirement |
Features
PA66 nylon with glass fiber material, lightweight and durable.
Both ends are threaded, making connection more convenient.
Domestic Hall elements are sensitive and reliable.
When the input voltage is 5V, the output high level is 4.5V. When the input voltage is 24V, the output high level is 23.5V.
Wiring: Red for positive, black for negative, yellow for output. Other specifications can be customized.
Customization requires a certain quantity.
Precautions
To prevent particles and debris from entering the sensor, a filter mesh must be installed at the sensor's inlet.
When magnetic materials or materials that generate magnetic force are close to the sensor, its characteristics may change.
The installation of the water flow sensor should avoid environments and applications with vibration and shaking to ensure measurement accuracy.
Do not disassemble the water flow sensor to prevent damage. Any sensor that has been disassembled is not covered by the warranty.
If you have not used this type of sensor before and are using it as a direct replacement, there may be some incompatibilities. Please bring this to our attention promptly.
There are differences between the working voltage and output voltage. Please choose according to your needs:
24V model: DC5-24V, rated voltage DC24V, output high level 23.5V, low level 0.5V.
Low power version (10μA): DC3.3-5.5V, rated voltage 5V, output high level 4.5V, low level 0.5V.
When connecting to a PLC, make sure to use the PLC's power supply and signal reception. Do not power it separately, as this may damage the Hall element.
Scope of Application
Water flow sensors are mainly used in gas water heaters, electric water heaters, washing machines, vending machines, wall-hung boilers, electromagnetic water heaters, water control (integrated) machines, water control machines, heat pump water heating projects, one-card management systems, smart water meters (IC water meters), campus card vending systems, self-service water (vending) machines, water treatment equipment, water and chemical distribution equipment, cooling systems, circulation systems, intelligent machinery and equipment, heating equipment, instruments and meters, pharmaceutical (preparation) equipment, etc.
